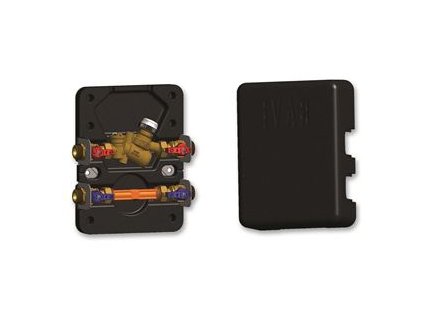

apartment measuring set EQUICOMPACT - to calculate heat consumption
RESIDENTIAL MEASUREMENT SET EQUICOMPACT - FOR DEDUCTION OF HEAT CONSUMPTION
IVAR.EQCP
- PN 10, T = +3 °C to +90 °C
- filter sieve porosity 500 µm
- the apartment measuring set is used to measure the consumption of supplied heat
from the central distribution - the set includes: 2-way zone valve with integrated thermostat
valve for closing / opening the system, balancing valve, sump
of a temperature sensor, a well for a differential pressure regulator, 4 pcs. of spherical ones
closures on inputs and outputs, filter screen, thermal insulation
and mounting brackets
connection thread external 3/4" M - material brass CW617N, insulation PP
Optional accessories:
heat and cold meter IVAR.WFM 50
IVAR.TE 3040 electrothermal head
IVAR.MAGICTIME PLUS weekly room thermostat
recommended installation box IVAR.P-KLASIK 1, openings for input / output must be adapted
