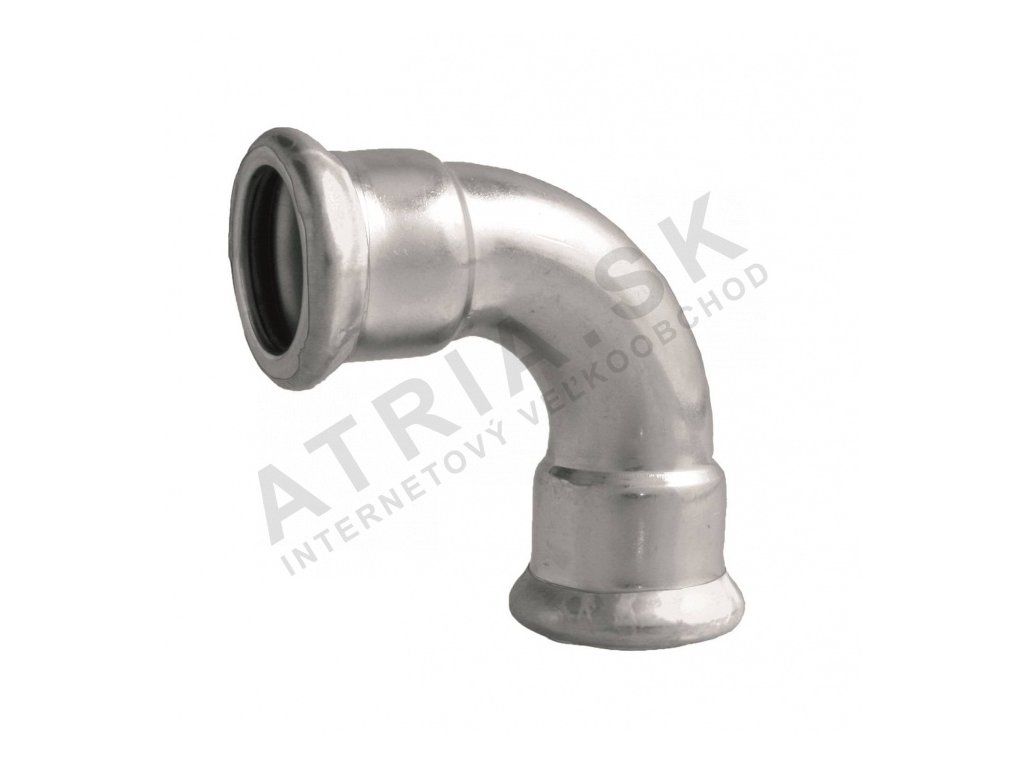

Arch 90° FF, 15 x 15
Code: IVC20.15Related products
Product detailed description
Back 90° FF, IVAR.IVC20, size: 15 x 15, package: 20 pcs
- PN 16, T = -20 °C to +85 °C - max. +120 °C
- arc 90 ° PRESS x PRESS
- purpose of use: for heating systems, sprinkler permanently watered systems,
pressure dry air, inert gases and industry - material: carbon galvanized steel, EPDM O-ring
- Compatible with M-type jaws
Note: Contains no surface coating limiting agents, leaks if not molded
and with molding indicator up to 54mm.
Capabilities:
- installation of central heating ductwork in a closed (pressurized) system
- installation of cold water and refrigeration ductwork
- installation of fire water piping
- installation of air conditioning ductwork
- installation of ductwork for solar systems
Benefits:
- fast and safe installation without welding and making threaded joints
- large range of pipe and fitting diameters from 15 mm up to 108 mm
- wide working temperature range -20 C to +180 C
- resistance to high pressures up to 16 bar
- possibility of combination with other systems
- low weight of pipes and fittings
- high aesthetics of assembly
- resistance to mechanical damage
The pipe is not certified for drinking water.
Additional parameters
| Category: | IVAR.IVC20 - 90° FF press curves |
|---|---|
| Warranty: | 2 roky |
| Weight: | 0.047 kg |
| Posledná aktuálizacia ceny: | 25.11.2024 21:16:33 |
