Assembly distributor IVAR.UNIMIX, 10-way

Code: 557678U

naparovana cena na magic

Brand: IVAR

25334 unimix univerzalna zostava skrina p max 4 3 4 xek 10cestny dab evosta 2 40 70 130 mosadz

25334 1 unimix univerzalna zostava skrina p max 4 3 4 xek 10cestny dab evosta 2 40 70 130 mosadz

–20 % €1 054,39 / pcs

Detailed information

Show all related products

Product detailed description

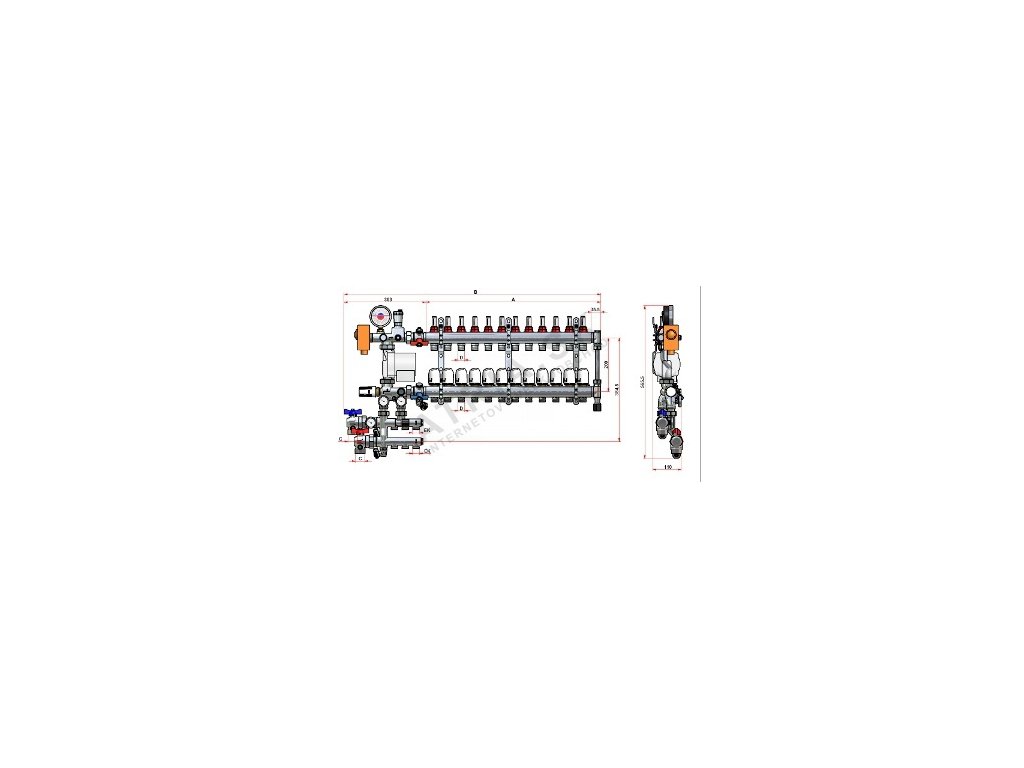

Divider assembly IVAR.UNIMIX, size: 3/4" x EK, 10-way

- universal assembly for combination of underfloor heating with radiator and with integrated three-way mixing valve

PN 6, T = +90 °C
connection thread internal 3/4" F
material brass CW617N

Assembly includes:

universal control and pump module with circulator and integrated three-way mixing valve with alternative control options, balancing control gate and adjustable BY-PASS flow
thermostatic head with separate immersion temperature sensor for constant temperature control
manifold with control flow meters
collector with shut-off valves
fixing brackets
insurance emergency thermostat
thermometer
2 pcs automatic vent valves
2 pcs of rotary drain valves
2 pcs of ball valves with fittings
2 plugs

Set circulating pump: DAB.EVOSTA 2 40-70/130

Circulation pump switching is not included in the assembly, it can be solved by a control or a control thermostat for circulation pumps IVAR.AC 614 E.

Note:

optional accessories electrothermal head IVAR.TE 3061, 24 V, proportional control 0-10 V - extra charge 37,00 €,
optional accessory electric actuator IVAR.UNIMIX SSA 31, 230 V, 3-position control signal - extra 107,00 €,

Notice:

Before any commissioning of the , especially when combining underfloor and radiator heating, we strongly advise that the entire system is flushed according to the manufacturer's instructions. We recommend treating the heating system with GEL.LONG LIFE 100.

Caution:
