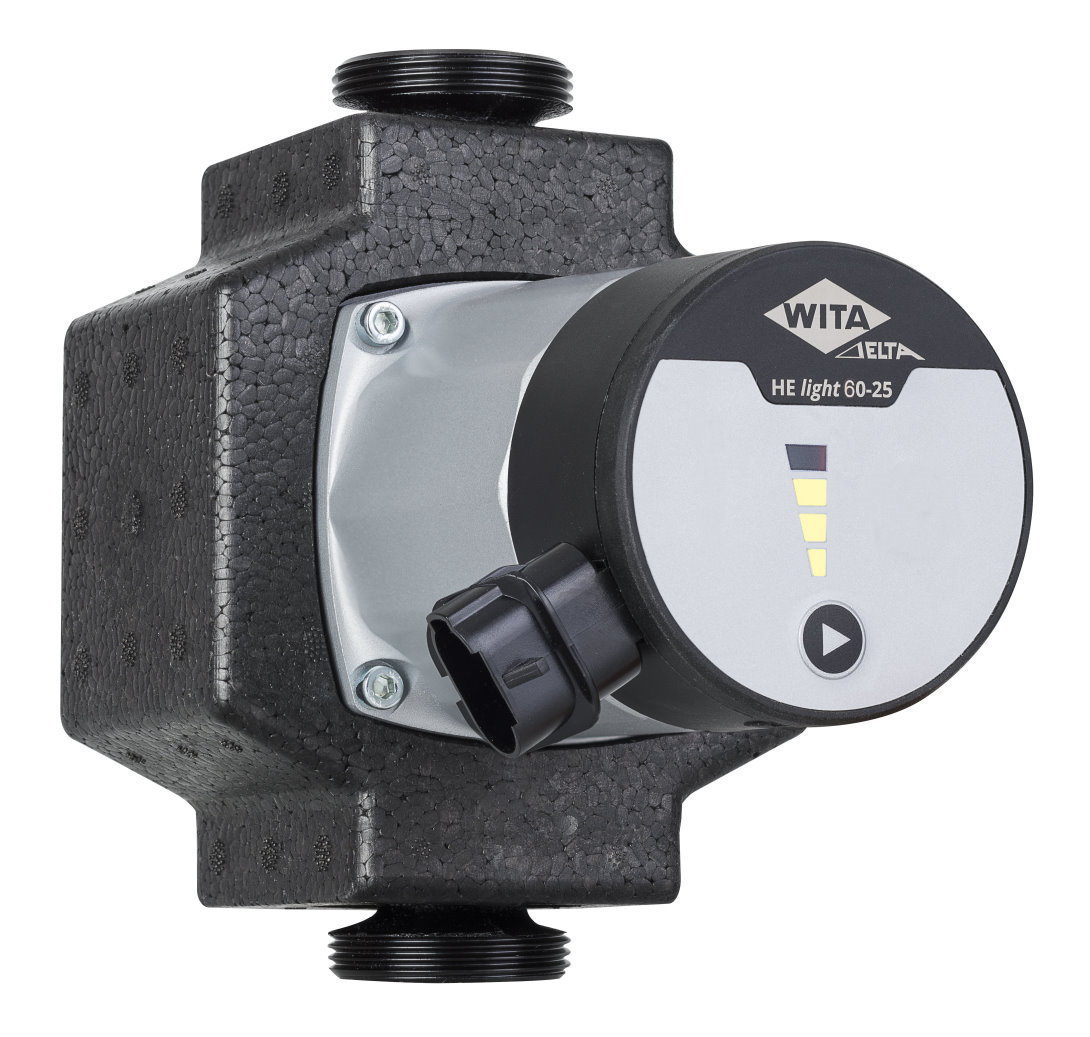

Circulating pump WITA Delta HE light 60-25-180

Product detailed description

As a material, WITA® processes cataphoresis-coated armature castings and chromium-nickel steel. These proven materials guarantee high resistance and a versatile range of applications. All circulating pumps are supplied with heat insulation shells, seals, coupling plugs or permanently installed cables.

In an average household, 10 to 15% of the electricity consumption is caused by conventional standard pumps. Through the use of the WITA® high efficiency pumps the energy consumption can be compared to a conventional circulation pump. Approximately 80%.
The hydraulic power could be almost kept the same compared to standard pumps.

Special features / Product advantages

• Highest efficiency through EC permanent magnet motor technology
• From 3 Watt min. input
• One-touch menu navigation
• Pre-selectable control modes constant speed / variable differential pressure
• Anti-block function
• Integrated motor protection
• High start-up safety
• Simple pipe mounting through a practical key attachment

Eight different performancecurves can be selected by one-touch operation. In addition to the four characteristics which operate according to the proportional pressure method, three further can be selected with a constant characteristic curve.

Technical Data:
