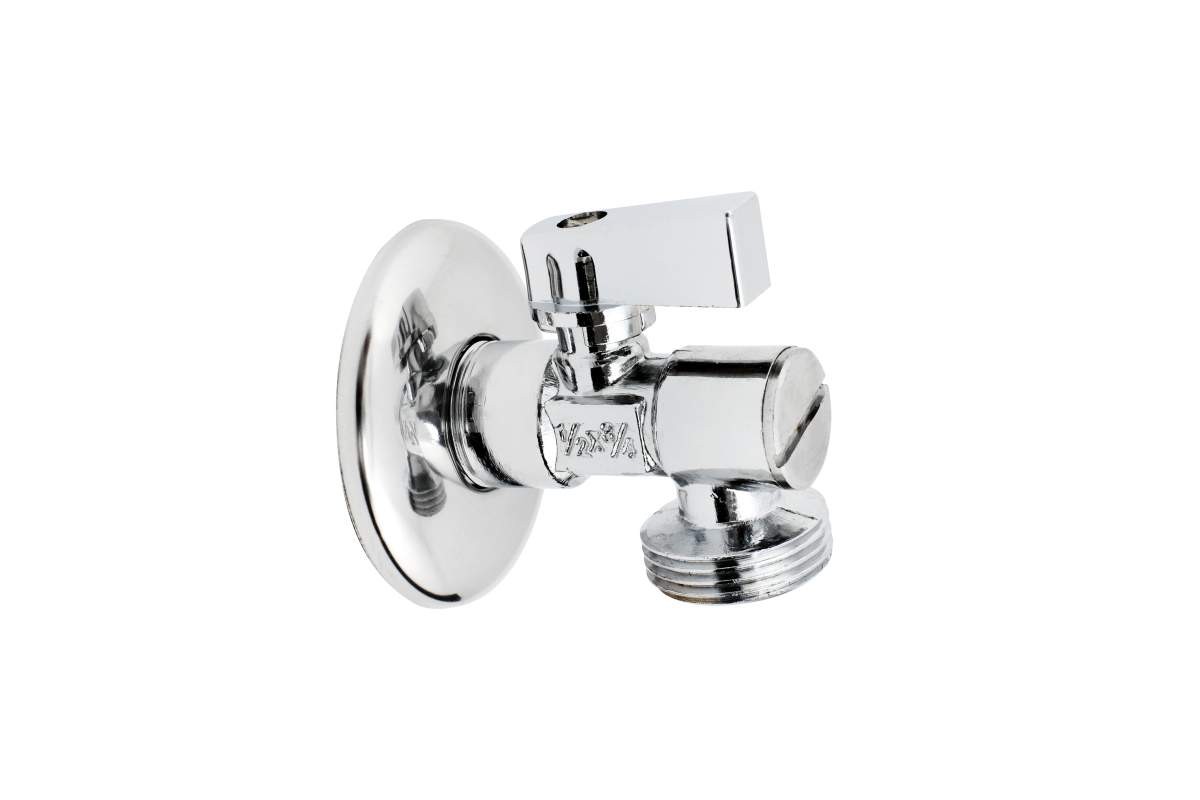

Úhlový kuličkový ventil s filtrem a rozetou 1/2-1/2"
Kód: ZK.F15Detailní popis produktu
Purpose: for opening and closing the water flow in water supply networks
Parameters:
– nominal pressure 10 bar
– maximum operating temperature 100⁰C
– working media: hot and cold water water supply systems – a declaration of
conformity
is issued for all valves – valves have a hygienic certificate issued by the National Institute of
Hygiene – made of brass, covered with chrome coating
– available in a version with a filter, without a filter or with a ceramic head

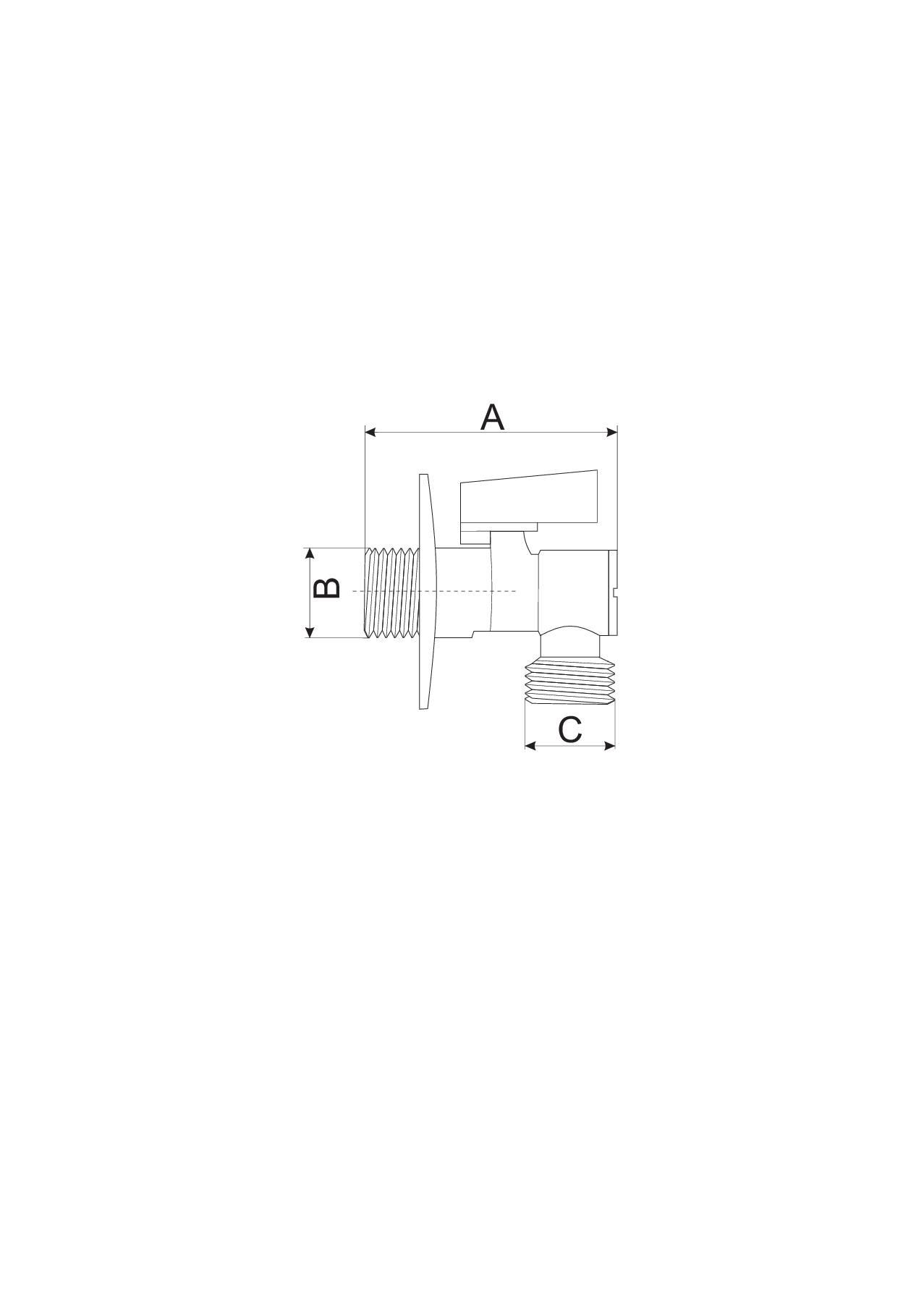

| INDEX | P [Mpa] | A [mm] | B [inch] | C [inch] | Size | Packaging [pcs] |
Comments | EAN code | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| ZK. F10 | 1,0 | 60 | G1/2 | G3/8 | 1/2"x3/8" | 100 | in the box | 5900308751190 | 0,094 |
| ZK. F15 | 1,0 | 60 | G1/2 | G1/2 | 1/2"x1/2" | 100 | in the box | 5900308751176 | 0,096 |
| ZK. F20 | 1,0 | 60 | G1/2 | G3/4 | 1/2"x3/4" | 100 | in the box | 5900308751183 | 0,105 |
