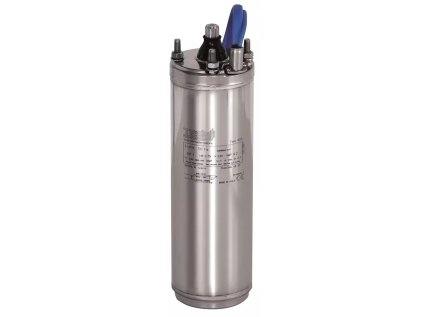

DAB.MOTOR 4GG - 4" submersible motors
4" SUBMERSIBLE MOTORS
DAB.MOTOR 4GG
Submersible two-pole asynchronous electric motor with mechanical parts is made of AISI 304 stainless steel. The rotor is housed in plain radial bearings, the axial load is captured by a robust plain heel bearing. Lubrication and cooling of the radial bearings and the heel bearing pan is by liquid filling. The stator is hermetically sealed in a stainless steel housing filled with a mixture of internal argon-based gases. The winding nodes (with protective conductor) are routed via a tight connection connector through a flat four-core wire above the pump, where a seamless connection of the actual supply cable is possible. Start-up and protection of a single-phase motor is generally handled, for example, by a CONTROL BOX start-up box containing a start-up capacitor and manually resettable motor overload protection. For heavier start-up, the CONTROL HS system is designed. Three-phase motor protection is provided by the user.
- Flange: NEMA - 4"
- Protection rating: IP68
- Insulation Class: F
- Supply Voltage:
Single phase 1x230 V/50 Hz
three-phase 3 x 230 V/50 Hz
three-phase 3 x 400 V/50 Hz
