Flange 42, PN 16
Code: IVC52.42Related products
Product detailed description

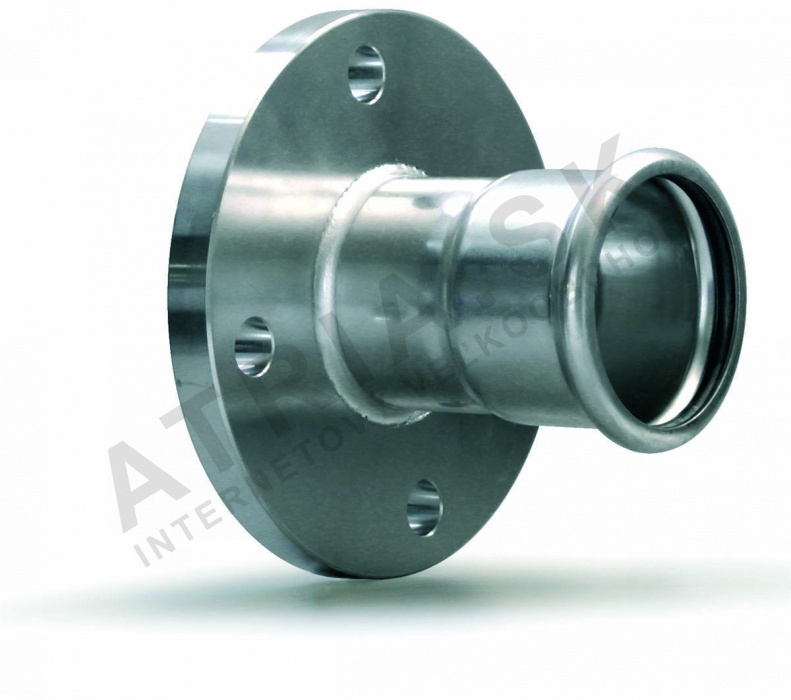

Flange - with crimping sleeve, IVAR.IVC52, size: 42 mm x DN 40, packing: 1 pcs
- PN 16, T = -20 °C to +85 °C - max. +120 °C
- flange with DN x PRESS press-in sleeve
- purpose of use: for heating systems, sprinkler permanently watered systems,
pressure dry air, inert gases and industry - material: carbon galvanized steel, EPDM O-ring
- Compatible with Type M jaws
Note: Contains no surface coating limiting agents, leakproof unless molded
and with molding indicator up to 54mm.
Application Options:
- installation of central heating piping in a closed (pressurized) system
- installation of cold water and cooling piping
- installation of fire water piping
- installation of air conditioning piping
- installation of piping for solar systems
Benefits:
- fast and safe installation without welding and making threaded joints
- large range of pipe and fitting diameters from 15 mm up to 108 mm
- wide working temperature range -20 C to +180 C
- resistance to high pressures up to 16 bar
- possibility of combination with other systems
- low weight of pipes and fittings
- high aesthetics of assembly
- resistance to mechanical damage
The pipe is not certified for drinking water.
Additional parameters
| Category: | IVAR.IVC52, IVC53 - flanges |
|---|---|
| Warranty: | 2 roky |
| Weight: | 2.324 kg |
| Posledná aktuálizacia ceny: | 24.09.2024 13:33:26 |
