Flange 88,9; PN 6

Code: IVC53.89
naparovana cena na magic
Brand: IVAR
–20 % €97,71 / pcs
1 week

Detailed information

Product detailed description

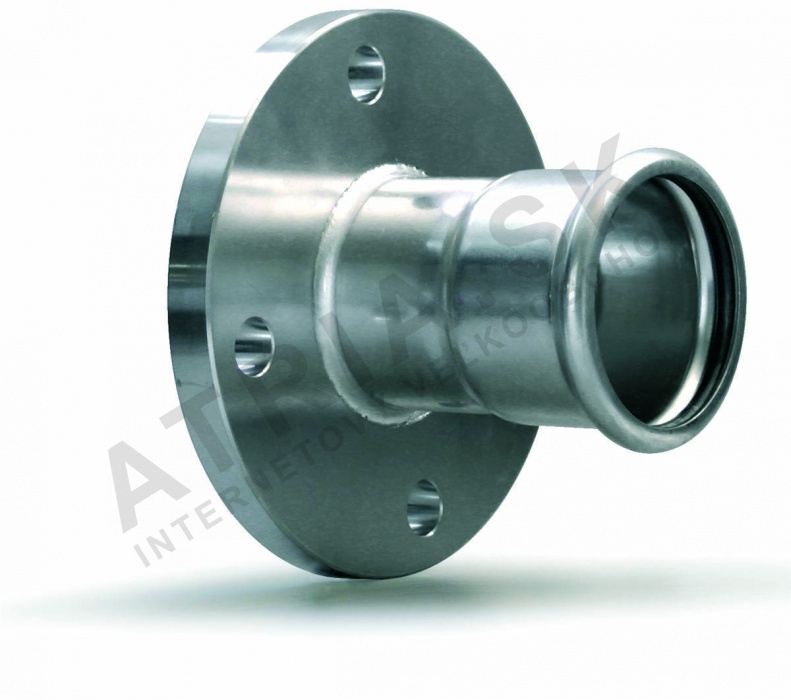

Flange - with crimping sleeve, IVAR.IVC53, dimension: 88,9 mm x DN 80, packing: 1 pcs

  • PN 6, T = -20 °C to +85 °C - max. +120 °C
  • flange with DN x PRESS press-in sleeve
  • purpose of use: for heating systems, sprinkler permanently watered systems,
    pressure dry air, inert gases and industry
  • material: carbon galvanized steel, EPDM O-ring
  • Compatible with Type M jaws

Note: Contains no surface coating limiting agents, leakproof unless molded
and with molding indicator up to 54mm.

Application Options:

  • installation of central heating piping in a closed (pressurized) system
  • installation of cold water and cooling piping
  • installation of fire water piping
  • installation of air conditioning piping
  • installation of piping for solar systems
Benefits:
  • fast and safe installation without welding and making threaded joints
  • large range of pipe and fitting diameters from 15 mm up to 108 mm
  • wide working temperature range -20 C to +180 C
  • resistance to high pressures up to 16 bar
  • possibility of combination with other systems
  • low weight of pipes and fittings
  • high aesthetics of assembly
  • resistance to mechanical damage

The pipe is not certified for drinking water.

Additional parameters

Category: IVAR.IVC52, IVC53 - flanges
Warranty: 2 roky
Weight: 3.422 kg
