Grommet 15 x R 1/2
Code: IVC87.1512Related products
Product detailed description

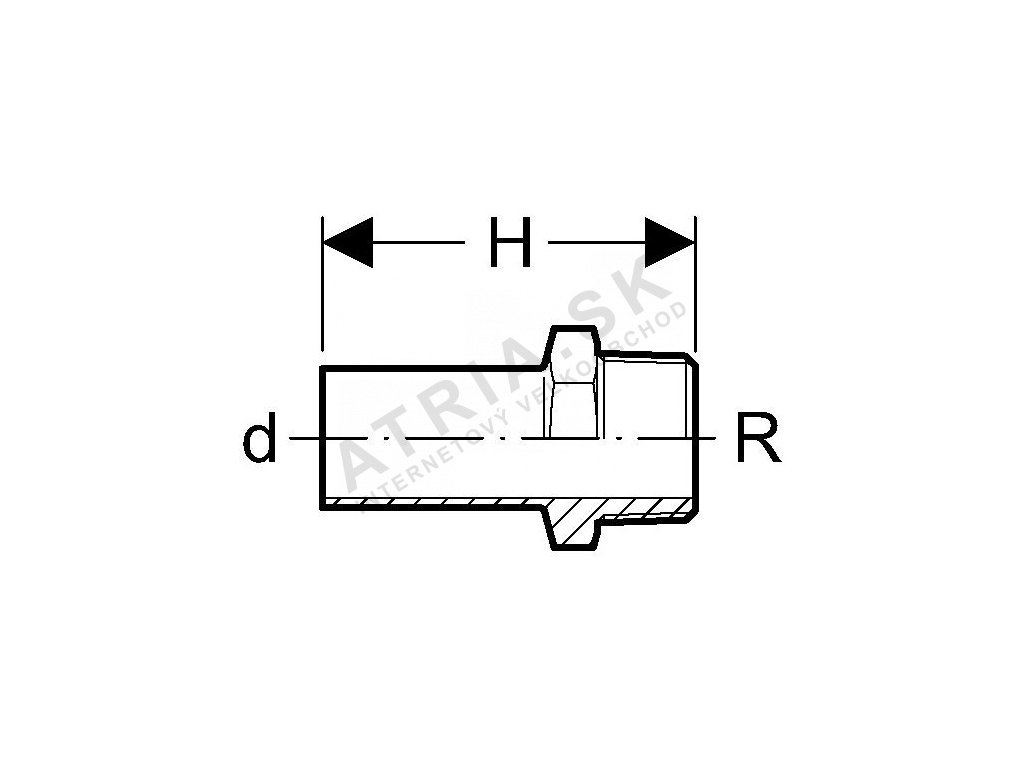

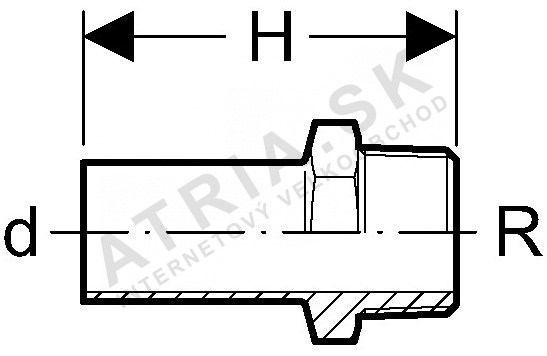

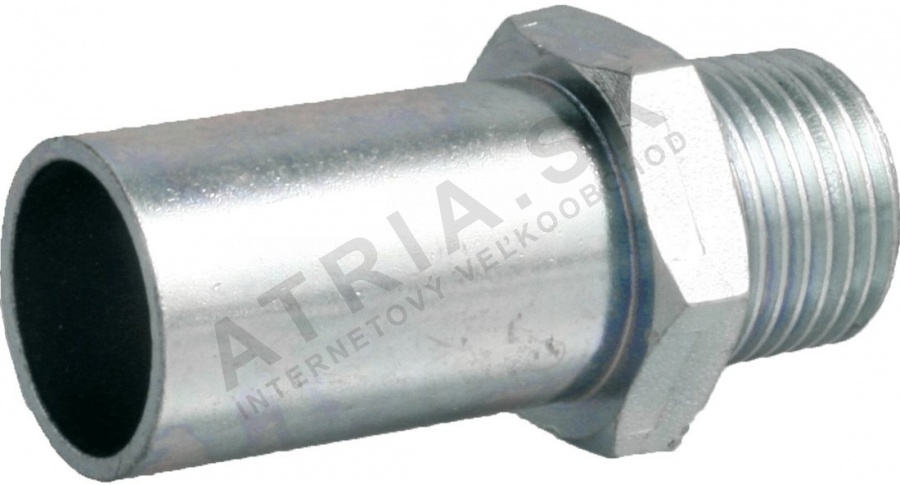

Grommet - externally threaded with one plug-in end, IVAR.IVC87, size: 15 mm x R 1/2, pack: 20 pcs
- PN 16, T = -20 °C to +85 °C - max. +120 °C
- through-through with male thread and one plug-in end d x THREAD
- purpose of use: for heating systems, sprinkler permanently watered systems,
pressure dry air, inert gases and industry - material: carbon galvanized steel
- Compatible with Type M jaws
Note:Contains no surface coating limiting agents, leaks unless molded
and with molding indicator up to 54mm.
Applications
- installation of central heating ductwork in a closed (pressurised) system
- installation of cold water and refrigeration ductwork
- installation of fire water supply ductwork
- installation of air-conditioning ductwork
- installation of air-conditioning ductwork
- installation of piping for solar systems
Advantages
- quick and safe assembly without welding and threaded joints
- large range of pipe and fitting diameters from 15 mm up to 108 mm
- wide working temperature range -20 C to +180 C
- resistance to high pressures up to 16 bar
- possibility of combination with other systems
- low weight of pipes and fittings
- high aesthetics of installation
- resistance to mechanical damage
The pipe is not certified for drinking water.
Additional parameters
| Category: | IVAR.IVC87 - Adapter with external thread and plug-in end |
|---|---|
| Warranty: | 2 roky |
| Weight: | 0.058 kg |
| Posledná aktuálizacia ceny: | 25.11.2024 21:17:07 |
