IVAR UNIMIX

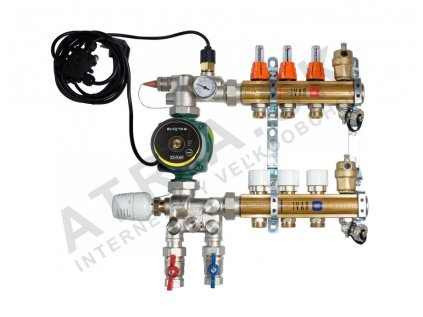

UNIMIX - UNIVERSAL KIT FOR COMBINATION OF FLOOR HEATING WITH RADIATOR - INCLUDING CABINET
IVAR. UNIMIX
- PN 6, T = +90 °C
- the set includes:
universal control and pump module with circulation pump and integrated three-way mixing valve with alternative
control options, balancing regulation screw and adjustable flow BY-PASS, thermostatic head with separate - immersion temperature sensor for constant temperature regulation, distributor with regulating flow meters, collector with closing valves
- with valves, mounting brackets, safety emergency thermostat, thermometer, 2 pcs of automatic venting valves, 2 pcs of rotary filling
- valves, 2 pcs of ball caps with screws, 2 pcs of plugs and an installation box of the appropriate size
- connecting thread internal 3/4" F
- material brass CW617N
WARNING:
can be ordered without a cabinet - the price will be reduced by €63.00
when ordering, state the cabinet type with the order number: code only (undermount), code + N (wall), or code + BS (without cabinet)
optional accessory electrothermal head IVAR.TE 3061, 24 V, proportional control 0-10 V - additional charge €37.00
optional accessory electric drive IVAR.UNIMIX SSA 31, 230 V, 3-position control signal - additional charge €107.00
Note:
Switching off the circulation pump is not part of the assembly, it can be solved by a superior regulation or a control thermostat for circulation pumps IVAR.AC 614 E.
Notice:
Before every start-up of the heating system, especially when combining underfloor and radiator heating, we strongly recommend flushing the entire system according to the manufacturer's instructions. We recommend treating the heating system with GEL.LONG LIFE 100. The seller is not responsible for functional defects caused by impurities in the system.
