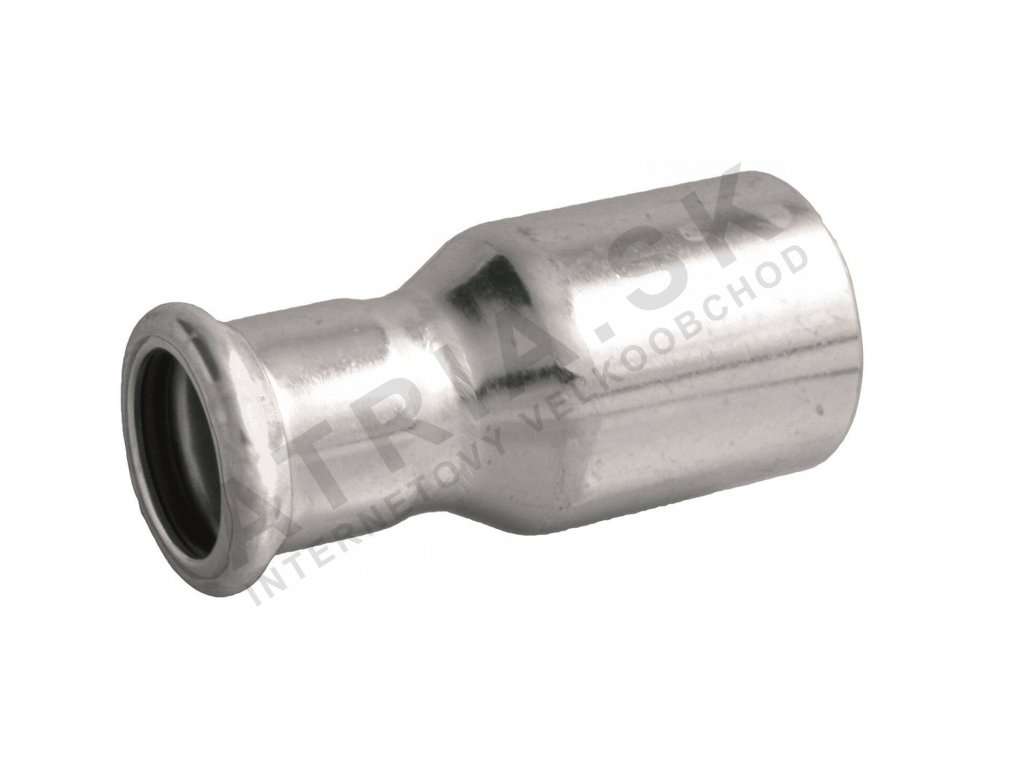

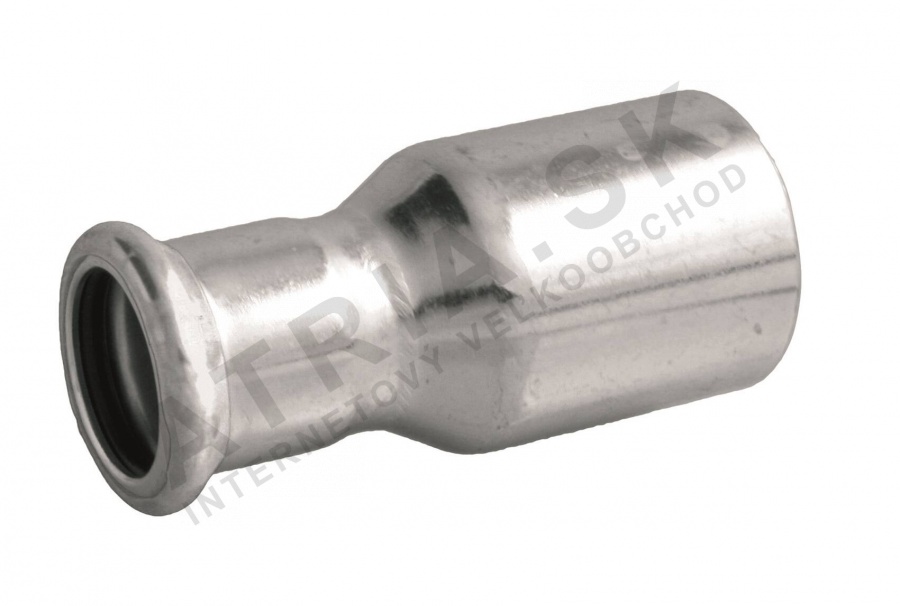

Reducer - with one plug-in end - C - 42-18mm IVAR.IVC12
Code: IVC12.4218Related products
Product detailed description
Reducing Coupling - single plug-in end, IVAR.IVC12, size: 42 x 18, pack: 6 pcs
- PN 16, T = -20 °C to +85 °C - max. +120 °C
- Single Plug-in End PRESS x d
- purpose of use: for heating systems, sprinkler permanently watered systems,
pressure dry air, inert gases and industry - material: carbon galvanized steel, EPDM O-ring
- Compatible with Type M jaws
Note:Contains no surface coating limiting agents, leakproof unless molded
and with a molding indicator up to 54mm.
Applications
- installation of central heating piping in a closed (pressurized) system
- installation of cold water and refrigeration piping
- installation of fire water piping
- installation of air conditioning piping
- installation of piping for solar systems
Benefits
- quick and safe assembly without welding and threaded joints
- large range of pipe and fitting diameters from 15 mm up to 108 mm
- wide working temperature range -20 C to +180 C
- resistance to high pressures up to 16 bar
- possibility of combination with other systems
- low weight of pipes and fittings
- high aesthetics of assembly
- resistance to mechanical damage
The pipe is not certified for drinking water.
Additional parameters
| Category: | IVAR.IVC12 - reduced couplings |
|---|---|
| Warranty: | 2 roky |
| Weight: | 0.12 kg |
| Posledná aktuálizacia ceny: | 24.09.2024 13:33:22 |
