SALUS 091FL
Code: 312100Product detailed description

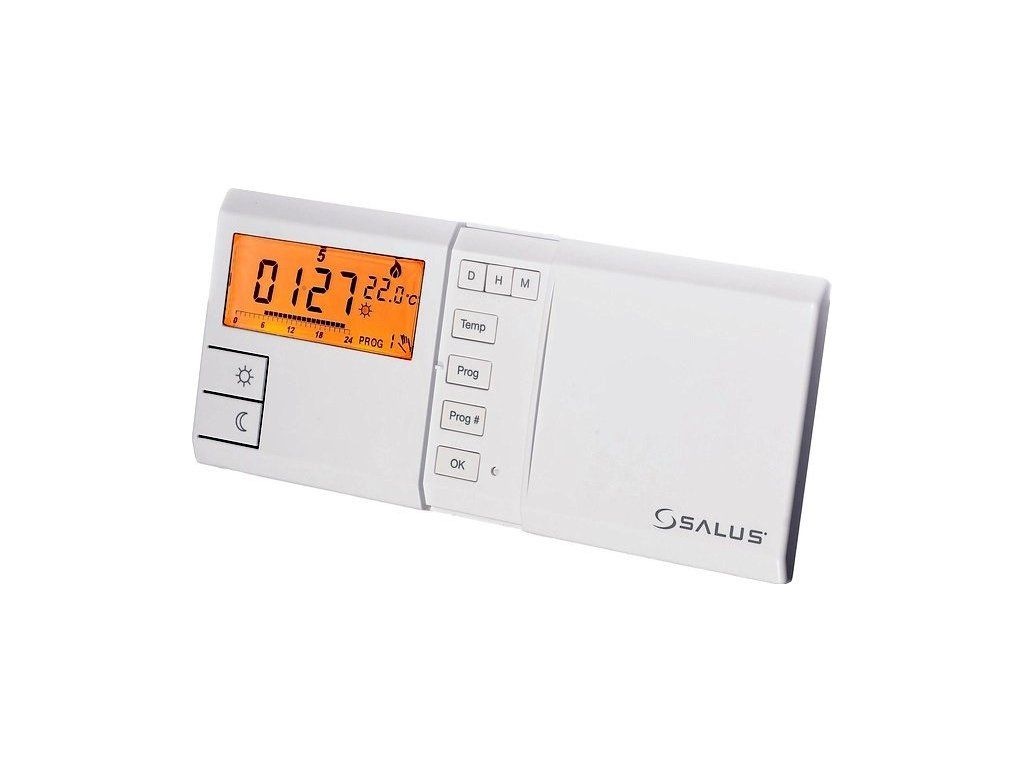

SALUS 091 FL - Room Programmable Weekly Thermostat with Backlit Display
The room controller or otherwise known as a weekly thermostat can be connected to almost any gas, electric, wood, pellet or coal fired boiler or furnace that supports two-point switching. On the thermostat it is possible to set a weekly program, i.e. different program or timing for each day. The thermostat allows two temperatures to be set, the so-called day temperature, which we use for heating during the day, and the setback temperature, which we use, for example, at night. The SALUS 091 thermostat also has advanced functions, of course, such as the boiler switching difference setting, where the exact difference between switching the boiler on and off is determined. This achieves not very frequent boiler switching. Or the possibility of setting a manual mode, where the controller can be immediately set to the heating option, even if it is set in the attenuation mode.
The room controller or otherwise known as a weekly thermostat can be connected to almost any gas, electric, wood, pellet or coal fired boiler or furnace that supports two-point switching. On the thermostat it is possible to set a weekly program, i.e. different program or timing for each day. The thermostat allows two temperatures to be set, the so-called day temperature, which we use for heating during the day, and the setback temperature, which we use, for example, at night. The SALUS 091 thermostat also has advanced functions, of course, such as the boiler switching difference setting, where the exact difference between switching the boiler on and off is determined. This achieves not very frequent boiler switching. Or the possibility of setting a manual mode, where the controller can be immediately set to the heating option, even if it is set in the attenuation mode.
The thermostat also includes 7°C frost protection, which is particularly useful for weekend homes or cottages.
In the package with the controller there is an installation manual, screws and dowels for mounting on the wall.
The display includes the possibility of displaying the boiler switch-on indication, the current and set temperature on the thermostat, the selected program, the sequential numbers of the day of the week, the current time, the heating indicator or the attenuation indicator.
The display includes the possibility of displaying the boiler switch-on indication, the current and set temperature on the thermostat, the selected program, the sequential numbers of the day of the week, the current time, the heating indicator or the attenuation indicator.
Use:
- Gas boilers, electric boilers, wood boilers, coal boilers, pellet boilers.
- Condensing boilers such as Junkers Compact, Viessmann Vitodens 100, ATTACK and many others.
Technical parameters:
- Measurement accuracy: 0.2 °C
- Maximum possible switching: 0 to 230V, max 5A
- Power supply:2 x AA batteries
- Temperature measurement range: 5 to 30 °C
Additional parameters
| Category: | programmable thermostats |
|---|---|
| Warranty: | 2 roky |
| Weight: | 0.1 kg |
| Prevedenie termostatu: | drôtový |
| Napájanie: | z el. siete, z kotla |
| Programy: | 6 prednastavených, 3 definované užívateľom |
| Batérie: | 2 alkalické batérie AA |
| Minimálna doba cyklu klimatizácie: | 5 minút |
| Presnosť hodín: | +/- 70 s mesiac |
| Presnosť merania teploty: | +/- 0,2 °C |
| Prevádzková teplota: | 0 - 40 °C |
| Prevádzková vlhkosť: | 5 - 90 % bez kondenzácie |
| Režim ovládania: | vykurovanie alebo chladenie |
| Rozmery: | 154 x 80 x 30 mm |
| Rozsah merania teploty: | 0 - 34,5 °C (krok 0,5 °C) |
| Rozsah regulácie teploty: | 5 - 30 °C (krok 0,2 °C) |
| Skladovacia teplota: | -20 až 60 °C |
| Spínanie: | 0 - 230 V AC 50 Hz 5 (3) A |
| Teplotný rozptyl: | 0,4 °C alebo 0,8 °C |
| Programovanie: | týždenný program |
