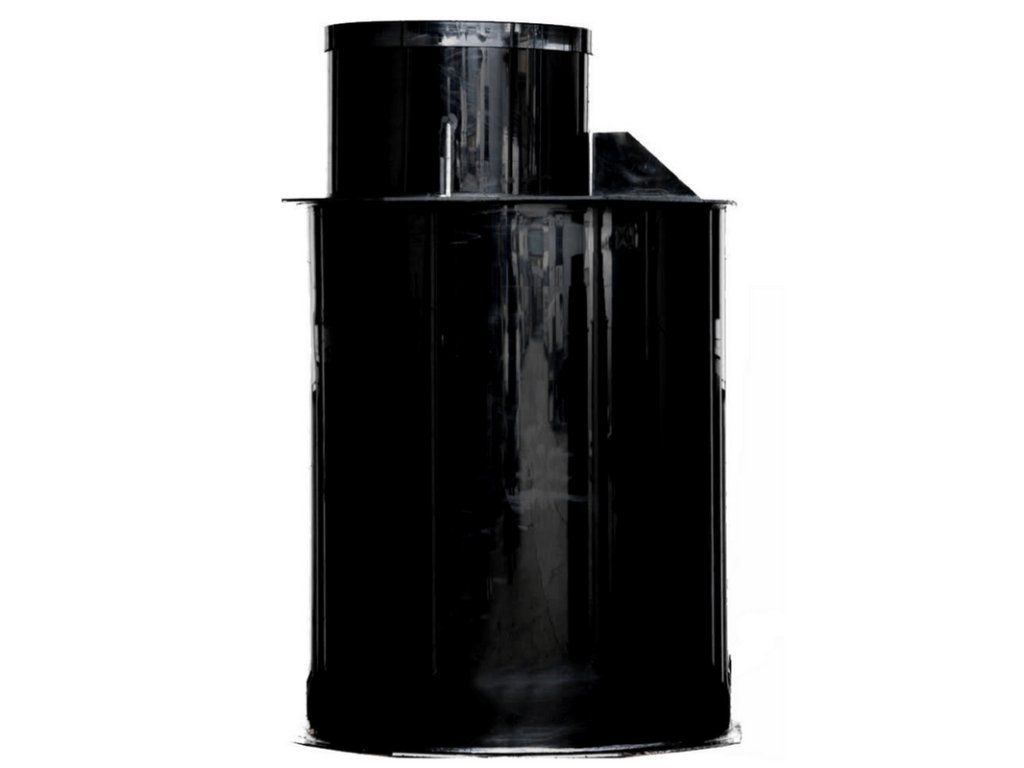

Shaft for drilled well 1600x1200

Product detailed description

The 1600x1200 drilled well shaft is used for the professional installation of a submersible pump and the necessary accessories over a drilled well. It is made of polypropylene and is to be placed below ground level. The 1600x1200 drilled well shaft includes: Cover Pumps Pipe passage from the shaft 1x - (optional, most often 1" ) Electrical cable passage Passage to the borehole of the most common diameters DN 110, DN 125, DN 140, DN 160, DN 200. This manhole is without pump, fittings and accessories. The difference between the various borehole shafts we offer is mainly in their width and height and therefore in the convenience of working and installing the water supply system. The size of the pressure vessel you plan to fit into the shaft is key. Advantages of the 1600x1200 shaft: simple construction, light weight - easy transport and installation self-supporting construction - no need to concrete the shaft (except for low groundwater levels) polypropylene - guarantee of extraordinary chemical and mechanical resistance and also long service life shaft inlet chimney: DN 600mm 1600x1200 shaft location: the 1600x1200 drilled well shaft should be located below ground level. It is supplied as standard with a plastic cover which must not be encumbered by regular walking or driving over. In the case of this installation, access to the lid must be prevented (e.g. by removable concrete slab or fencing of the manhole area). Our customers most often use: a domestic waterworks with a submersible pump and a pressure vessel. In this type of domestic waterworks, the shaft houses the borehole submersible pump, pressure vessel, pressure switch, non-return valve, connecting flexi hose, connecting fittings, ball valve and water filters. A domestic waterworks with a submersible pump and a frequency converter.In this type of domestic waterworks, the shaft houses a submersible pump for the borehole, a pressure vessel with a fitting (8 litres is sufficient), a frequency converter, a non-return valve, connecting fittings and water filters. These components are not included in this manhole. You can purchase them in variants of different pumps and pressure vessels - you can find the whole range in the category Domestic waterworks.
