Socket - C - 42mm IVAR.IVC10
Code: IVC10.42Related products
Product detailed description

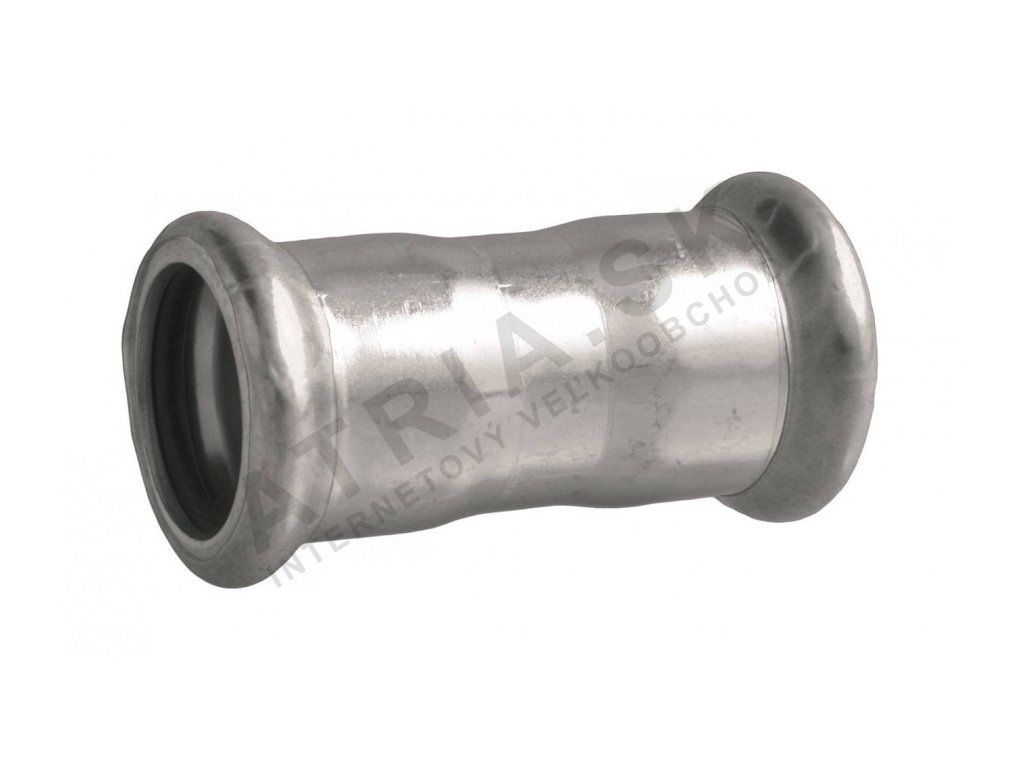

Press Coupling, IVAR.IVC10, dimension: 42 x 42, packing: 8 pcs
- PN 16, T = -20 °C to +85 °C - max. +120 °C
- Coupling PRESS x PRESS
- Purpose of use: for heating systems, sprinkler permanently watered systems,
- pressure dry air, inert gases and industry
- Material: carbon galvanized steel, O-ring -EPDM
- Compatible with Type M jaws
Note:
Contains no surface coating limiting agents, leak-proof unless molded, and with a crimp indicator up to 54 mm.
Use options:
- installation of central heating ducting in a closed (pressurised) system
- installation of cold water and refrigeration ducting
- installation of fire protection ducting
- installation of air conditioning ducting
- installation of ducting for solar systems
Benefits:
- quick and safe installation without welding and making threaded connections
- large range of pipe and fitting diameters from 15 mm up to 108 mm
- wide working temperature range -20 C to +180 C
- resistance to high pressures up to 16 bar
- possibility of combination with other systems
- low weight of pipes and fittings
- high aesthetics of installation
- resistance to mechanical damage
The pipe is not certified for drinking water.
Additional parameters
| Category: | IVAR.IVC10 - clutch press |
|---|---|
| Warranty: | 2 roky |
| Weight: | 0.142 kg |
| Posledná aktuálizacia ceny: | 25.11.2024 21:16:26 |
