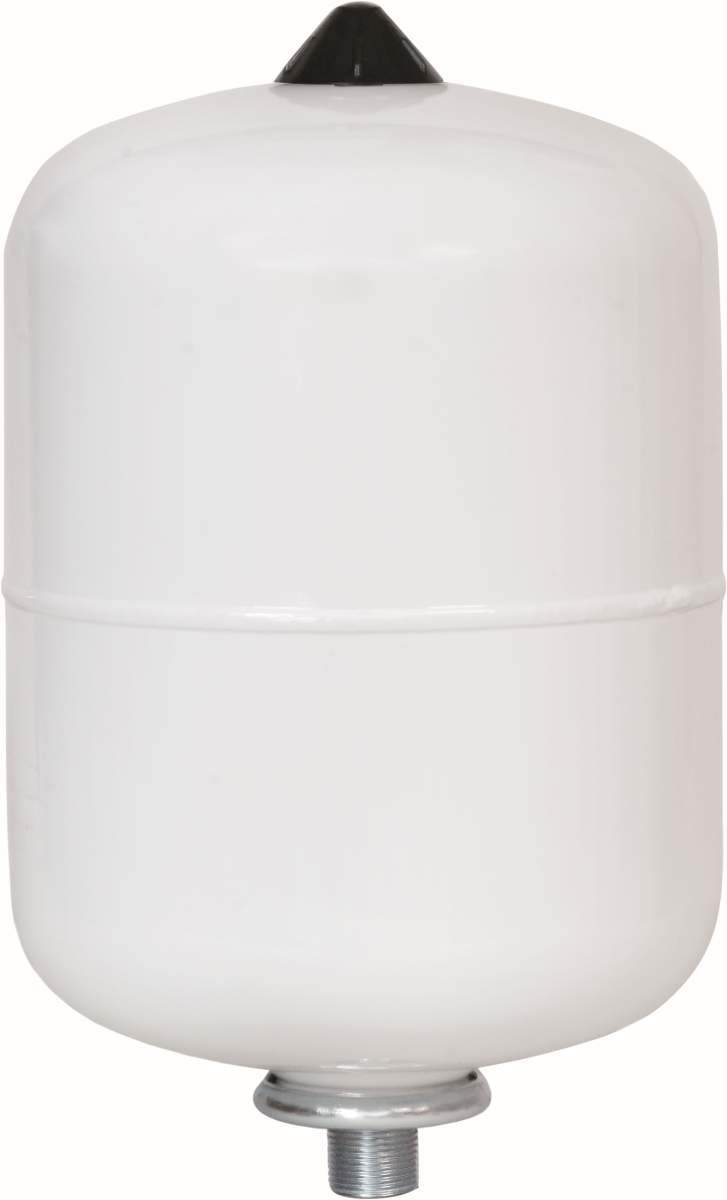

Solar expansion vessel IBAIONDO 12L
Code: NS.12.IBProduct detailed description
- High-quality diaphragm according to DIN 4807-3
- Galvanized or brass connection
- Strength up to 1300C for up to 1h
- Pre-pressure: 2.5 bar
- Temperature range: -100C/+1000C
- White powder-coated tank
- Maximum glycol content in the installation up to 50%
- Replaceable membrane for tanks 35-700l, non-replaceable from 2 to 24l
- Intended for solar systems in closed circuits
2-year warranty

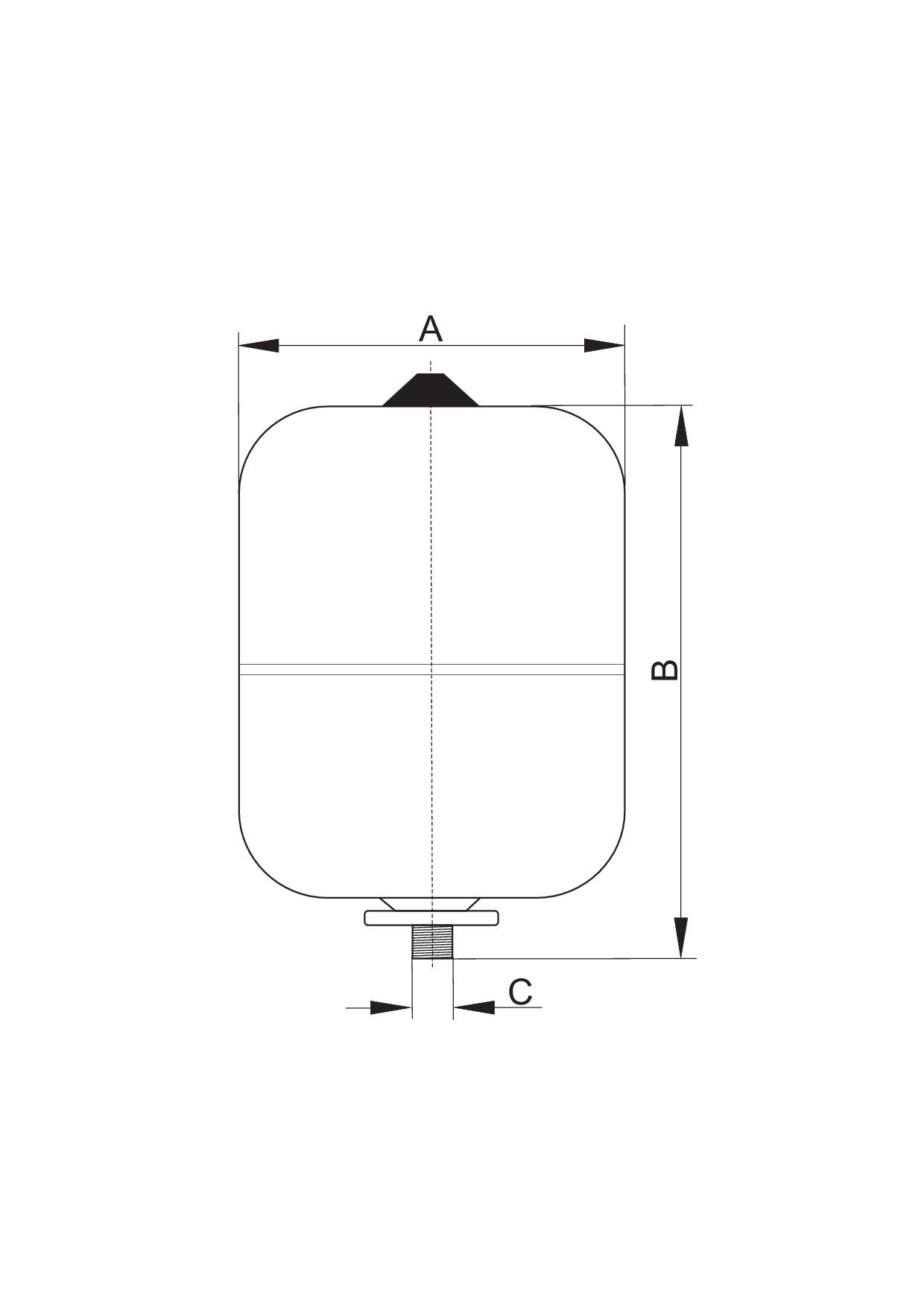

| INDEX | Pojemność [l] | Max. pressure [bar] | C [inch] | B [mm] | A [mm] | Collective packaging [pcs] | Comments | EAN code | Net weight (kg) |
| NS.2.IB | 2 | 10 | 3/4´´ | 245 | 110 | 1 | – | 0,000 | |
| NS.5.IB | 5 | 10 | 3/4´´ | 250 | 200 | 1 | – | 0,000 | |
| NS.8.IB | 8 | 10 | 3/4´´ | 340 | 200 | 1 | 5900308748770 | 1,880 | |
| NS.12.IB | 12 | 10 | 3/4´´ | 310 | 270 | 1 | 5900308748787 | 2,460 | |
| NS.18.IB | 18 | 10 | 3/4´´ | 415 | 270 | 1 | 5900308748794 | 3,120 | |
| NS.24.IB | 24 | 10 | 3/4´´ | 430 | 320 | 1 | 5900308748800 | 4,020 | |
| NS.35.IB | 35 | 10 | 1´´ | 615 | 360 | 1 | with feet | 5900308749258 | 8,860 |
| NS.50.IB | 50 | 10 | 1´´ | 750 | 360 | 1 | – | 0,000 | |
| NS.80.IB | 80 | 10 | 1´´ | 750 | 450 | 1 | – | 0,000 | |
| NS.100.IB | 100 | 10 | 1´´ | 850 | 450 | 1 | – | 0,000 |
