System insulation board UHP55 for underfloor heating (STIROTERMAL BASIC)
Code: STIROTERMAL BASICRelated products
Product detailed description
Systemic polystyrene insulation board UHP55 (STIROTERMAL BASIC) with increased hardness for underfloor heating.
Note: Price shown is for 1 meters2.
 |
Board size 0,7875m2 Pipe diameter: 16 - 20 mm Bending strength: up to 115 kPa Total height: 55 mm |
Collection only possible in whole packages One package contains 10.2375 meters2, or 13 sheets. Cardboard size: 1145 x 795 x 600 mm Dimension of one board is 0.7875 meter2 |
All system boards contain a so-called "lock", guaranteeing the overlap of each side of the board with the next board, thus ensuring no penetration of concrete under the polystyrene.
Polystyrene insulationis made from extruded polystyrene. Applies to UHP55 - 51

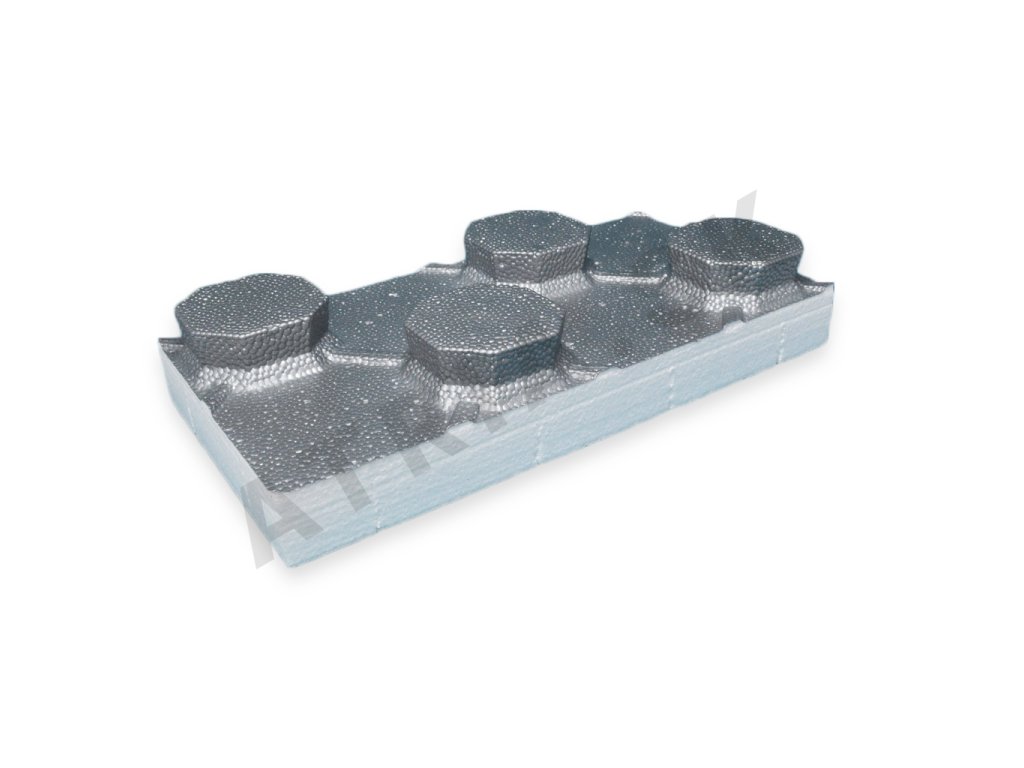

The upper part of the board consists of octagonal protrusions (mushrooms) with overhangs allowing quick and easy installation (the pipe does not subsequently pop out) of any pipe 16 to 20 mm thick.
In the inner part of the plate under the projections there are 5 mm small projections, which ensure that the pipe is perfectly encased with grout, thus also from the bottom. This ensures perfect heat transfer to the heating plate around the entire circumference of the pipe.
For more information, visit www.systemova-doska.sk, or for an installation guide for underfloor heating with FAQs, visit www.systemova-doska.sk/podlahove-vykurovanie/
 |
due to increased demand we ask you to place your order well in advance |
- For pipe diameter: 16-20 mm
- Piping spacing: 75, 150, 225 mm
- Insulating material: EPS 120
- Clean board dimension (real usable dimension): 1050 x 750 mm
- Net board area: 0.7875 m2
- Top plate gross dimension (total plate dimension): 1075 x 775 mm
- Total thickness with protrusions: 55 mm
- Insulation thickness: 30 mm
- Heat conductivity coefficient: 0,036 W/(m.K)
- Thermal resistance of the board: 0.80 m2K/W
-
Maximum load : 2400 kg/m2
- Thermal resistance : 80 "C
- Fire classification EN 13501-1: E
- Fire classification DIN 4102: B1
- Film thickness: 0.18 mm
- Film material: PE
- Film colour: grey with Al powder
- Quantity per package, m2 : 10,2375 m2
- Quantity per package, sheets : 13
- Cardboard size: 1145 x 795 x 600 mm
- Country of origin: EU
Additional parameters
| Category: | Polystyrene, system boards |
|---|---|
| Warranty: | 2 roky |
| Weight: | 1.5 kg |
| Celková hrúbka s výstupkami: | 58 mm |
| Čistá plocha dosky: | 0,7875 m2 |
| Čistý rozmer dosky (rozmer reálne použiteľný): | 1050 x 750 mm |
| Farba fólie: | zelená |
| Hrúbka fólie: | 0,18 mm |
| Hrúbka izolácie: | 33 mm |
| Hrubý rozmer dosky (celkový rozmer dosky): | 1075x775 mm |
| Izolačný materiál: | EPS |
| Koeficient tepelnej vodivosti: | 0,037 W/(m.K) |
| Materiál fólie: | PE |
| Množstvo v balíku, m2: | 10,24 m2 |
| Množstvo v balíku, tabúľ: | 13 |
| Odporúčané potrubie: | PEX-AL-PEX 16 x 2 |
| Odporúčané rozdeľovače: | Nerezové rozdeľovače |
| Pevnosť v ohybe: | 115 kPa |
| Pevnosť v tlaku (10% kompresia): | 100 kPa |
| Požiarna klasifikácia DIN 4102: | B1 |
| Požiarna klasifikácia EN 13501-1: | E |
| Pre priemer potrubia: | 16 - 20 mm |
| Rozmer kartónu: | 1145x795x600 mm |
| Rozteč uloženia potrubia: | 75,150,225 mm |
| Tepelný odpor dosky: | 0,89 m2K/W |
| Teplotná rozmerová stálosť: | 80 °C |
| Krajina pôvodu: | EU |
Video Systémová izolačná doska UHP55 pre podlahové kúrenie (STIROTERMAL BASIC)
