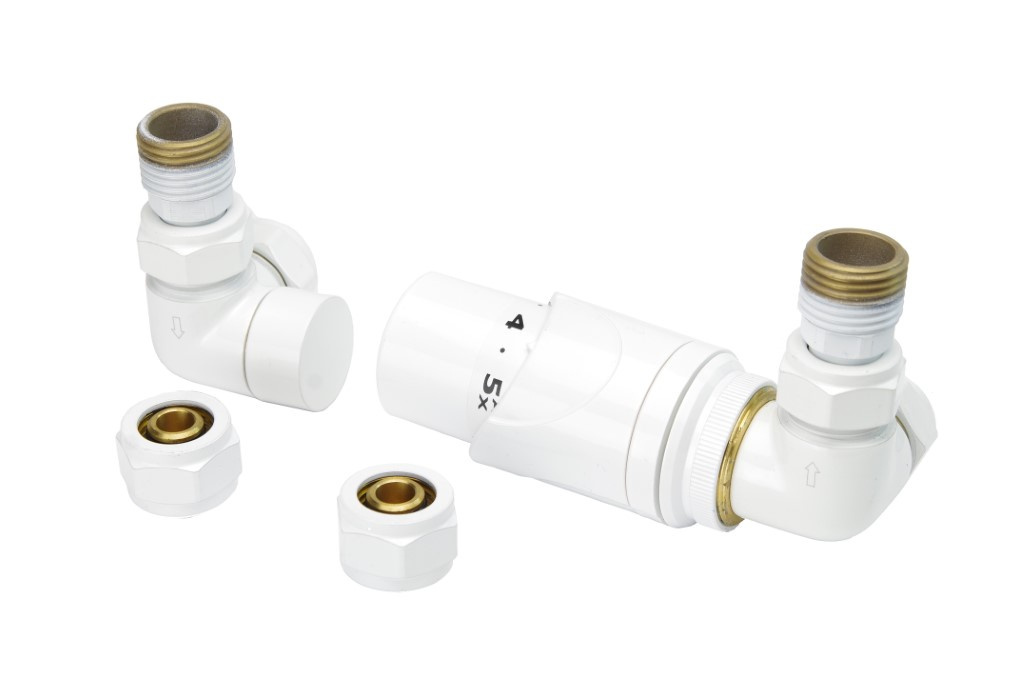

TULLY Three-axis thermostatic set

Product detailed description

Three-axis thermostatic valve white TULLY.

 The set includes:

• 1 three-axis thermostatic valve,

• 1 three-axis shut-off valve,

• 1 thermostatic head,

• 1/2" fittings: 16x2 PEX, 15x1 CU

 GOOD TO KNOW:

The axial thermostatic set is designed to be mounted on a central heating radiator in a two-pipe system.

The thermostatic valve is mounted on the central heating radiator on the supply line side.

The shut-off valve is mounted on the central heating radiator on the return line side.

The shut-off valves are set to the open position (max. flow) at the factory.

Specifications:

• Operating temperature max. 120°C
• Nominal pressure max. 1MPa
• Heating medium water
• Test Pressure 1.5MPa
• Head mounting thread: M30x1.5
• Presetting on the shut-off valve
• Radiator connection G 1/2
• Three-axis version

You can buy Tully three-axis thermostatic valves in the following colors: white, black and chrome.

CONNECTION OPTIONS:

Tully three-axis thermostatic valves can be connected to the radiator when you have the following inputs:

POSSIBLE INSTALLATIONS:

The TULLY three-axis thermostatic valve can be connected to both the PEX 16mm system - to do this you need to choose only the right fittings

You can also connect the TULLY thermostatic, triaxial valve to a 15mm CU installation - to do this, you need to choose only the right fittings
