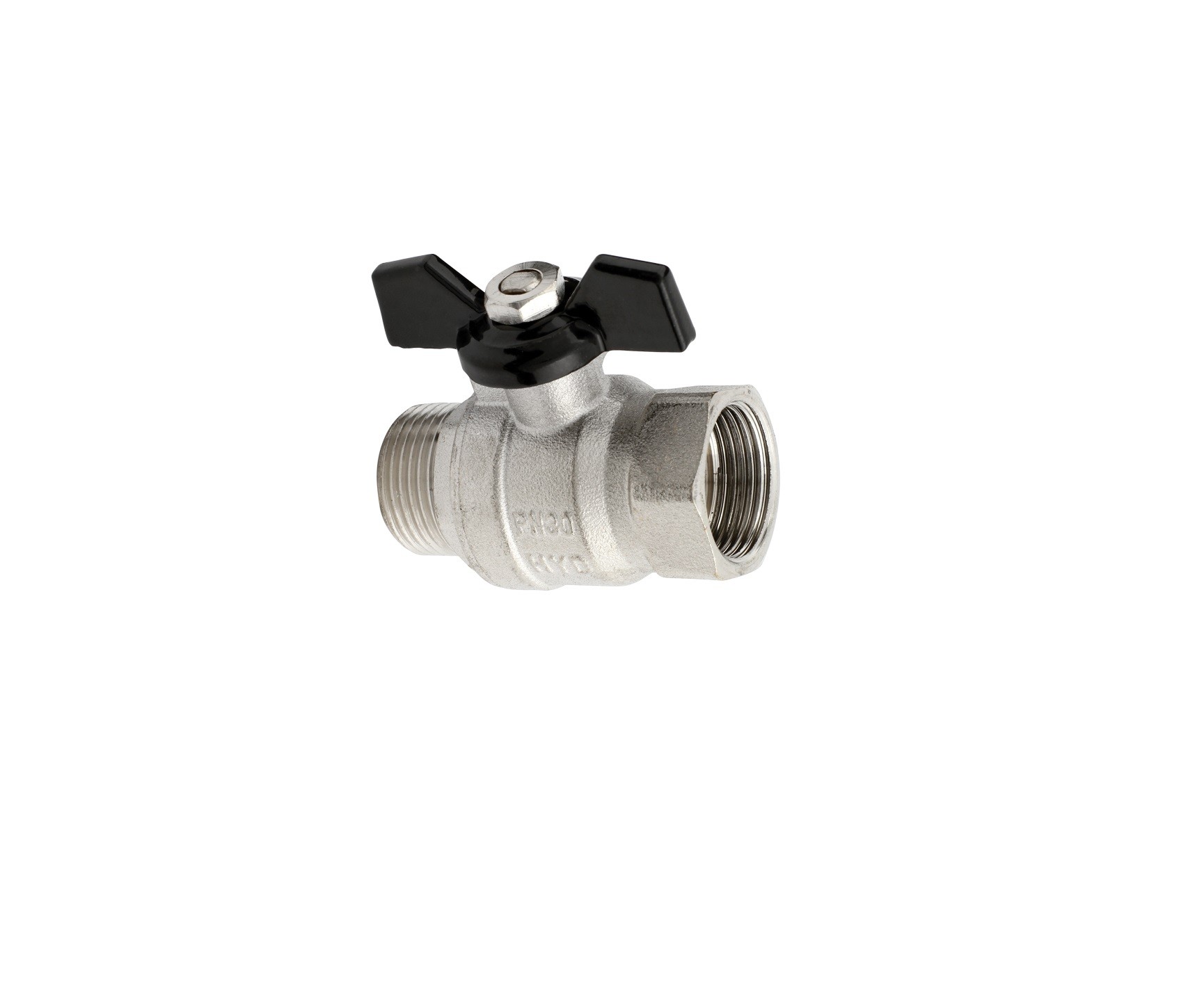

Water ball valve TYTAN with butterfly handle and compression nut 3/4'', F-M
Code: ZKWMD-PP-20-NWProduct detailed description
Parameters:
– nominal pressure 30 bar
– maximum working temperature 1200C
– working media: hot and cold water for plumbing and central heating
Execution:
– body made of brass
– chrome-plated ball made of brass with PTFE Teflon seal (only 1/4 turn is required to close the valve)
– PVC-coated steel lever
– a compression nut that allows for backlash compensation
– nickel plated surface
– full bore cross section
5-year warranty

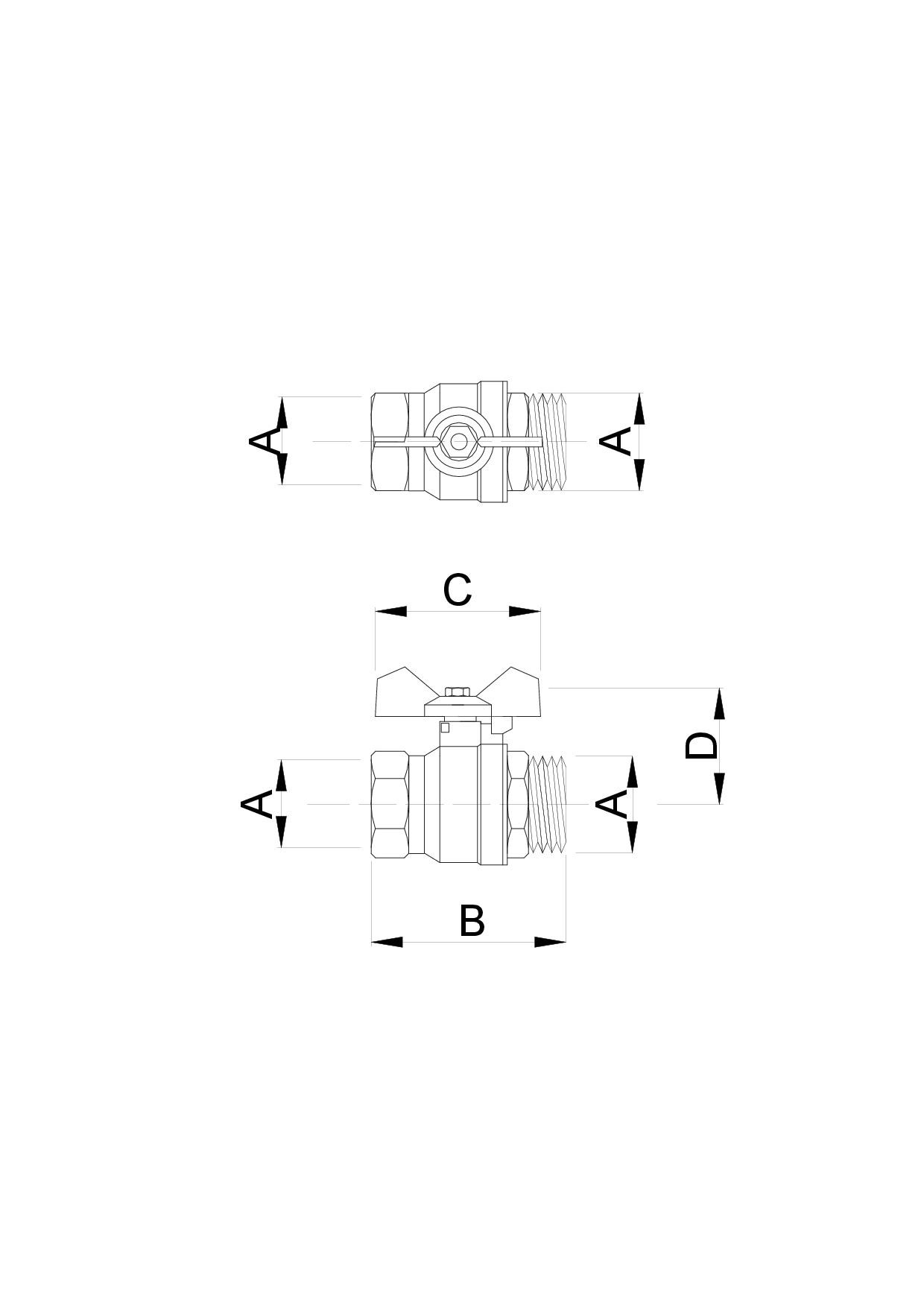

| INDEX | DN | Ball bore diameter [mm] | P [Mpa] |
A [mm] |
B [inch] |
C [mm] |
D [mm] |
Size | Collective packaging [pcs] |
EAN code | Net weight (kg) |
| ZKWMD-PP-15-NW | 15 | 15 | 3,0 | G1/2 | 56 | 56 | 38,5 | 1/2´´ | 12/144 | 5900308734414 | 0,164 |
| ZKWMD-PP-20-NW | 20 | 20 | 3,0 | G3/4 | 63 | 55,5 | 41 | 3/4´´ | 10/100 | 5900308734421 | 0,244 |
| ZKWMD-PP-25-NW | 25 | 25 | 3,0 | G1 | 73 | 66,5 | 48,5 | 1´´ | 6/60 | 5900308734438 | 0,389 |
